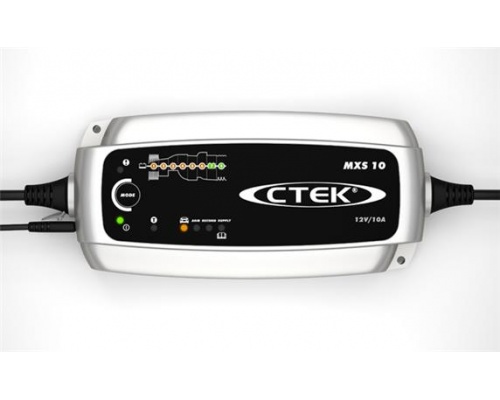

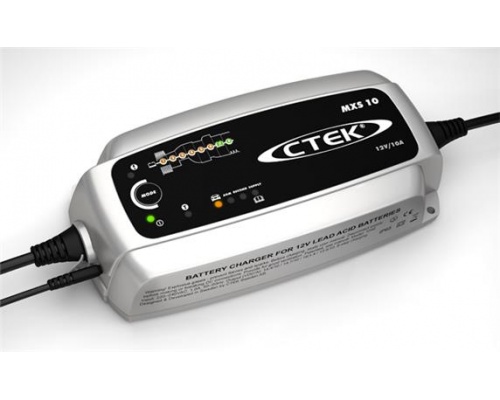

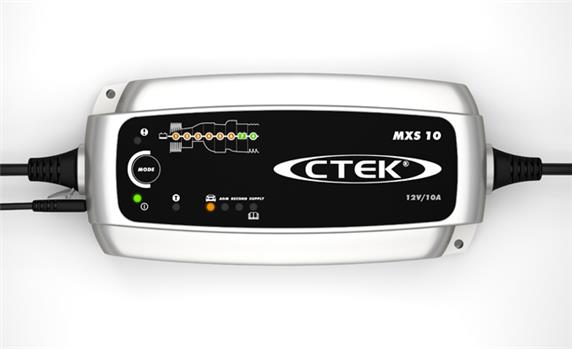

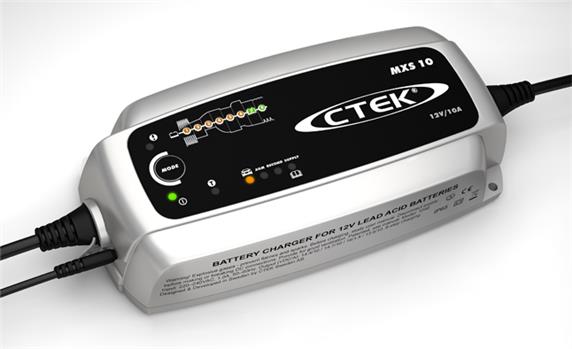

MXS 10

Powerful professional charging for workshops

The ultimate charger

The MXS 10 gives you state of the art technology and is ideal for professional use in workshops for caravan, RV, boat and car batteries with remote temp. sensor and power supply mode.

The MXS 10 is a fully automatic 8-step charger that delivers 10A to all types of 12V batteries from 20-200Ah and is also suitable for maintenance charging up to 300Ah. It includes battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning sulphated and deeply discharged batteries, a winter program for charging in cold weather which is also the AGM option which maximises the performance life of most Stop/Start batteries. The MXS 10 also has a temperature sensor for optimised charging and it can even be used as a power supply source for 12V equipment.

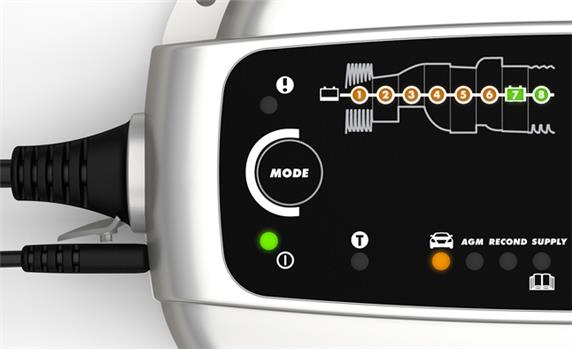

• Fully automatic ‘connect and forget’ 8 step charging
• Charges batteries from 20-200Ah
• Temperature sensor, AGM and Recond programs
• Power supply for 12V equipment

Technical information
Ambient temperature; -20˚C to +50˚C
Positioning; Portable
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 1.4A max
Output; 14.4V/14.7V/15.8V/13.6V, 10A max
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 20–300Ah
Insulation class; IP65 (splash and dust proof)
Model Number; 56-823
