PRO60

Professional battery management redefined

Innovative technology

The CTEK PRO60 is an innovative and highly efficient 60A battery charger and power supply that’s designed to meet the demands of the modern workshop. With its cutting edge design, advanced technology and state of the art features, it’s the perfect solution for comprehensive battery charging, maintenance and support.

The CTEK PRO60 restores charge and reconditions batteries using a patented multi step charging process. It’s compatible with all types of 12V battery, including normal wet/flooded, Ca/Ca and Lithium (LiFePO4), as well as AGM and EFB Stop/Start batteries. The PRO60’s ‘adaptive charging’ mode automatically detects the appropriate settings for the battery and applies the optimum settings for the fastest charge. It’s designed to be user friendly with just four buttons and a clear, easy to read LCD display. The PRO60 is also the perfect stable power supply, with 12.6-14.8V available in selectable 0.1V increments. This ensures that no damage can occur to sensitive vehicle electronics.

• Variable output in power supply mode (12.6V-14.8V)
• Compatible with all types of 12V battery, including Lithium (LiFePO4)
• Suitable for batteries from 10Ah-1800Ah (15Ah-600Ah LiFePO4)
• Resonant Converter technology for fast and efficient charging

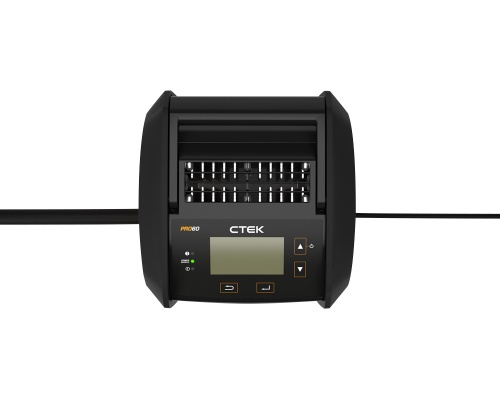

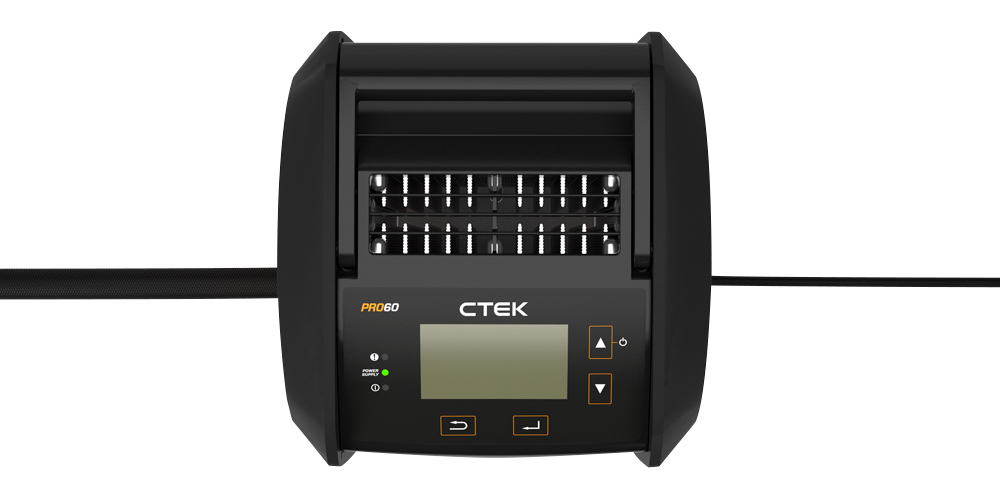

• Easy to use with clear LCD display
• Unique, patent applied for ‘adaptive charging’ mode automatically detects battery size
• Two power supply modes for diagnostic or showroom use
• Built in temperature compensation
• Rugged, impact resistant polycarbonate casing

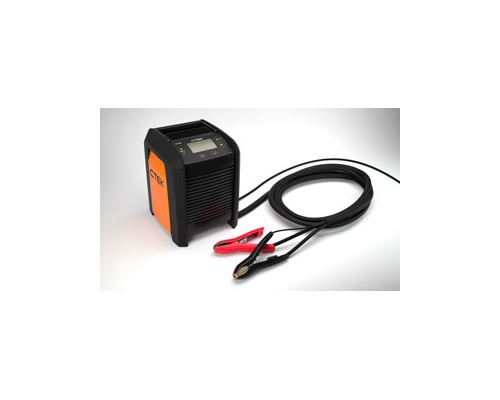

• 5m cables and heavy duty clamps
• Safe spark free operation
• Reverse polarity protected
• Short circuit proof

Technical information
Ambient temperature; -20˚C to +50˚C (- 4°F to +122°F)

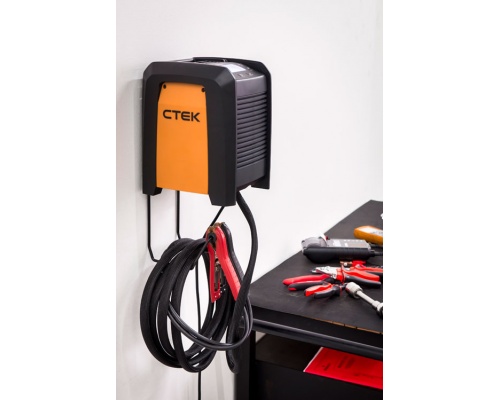

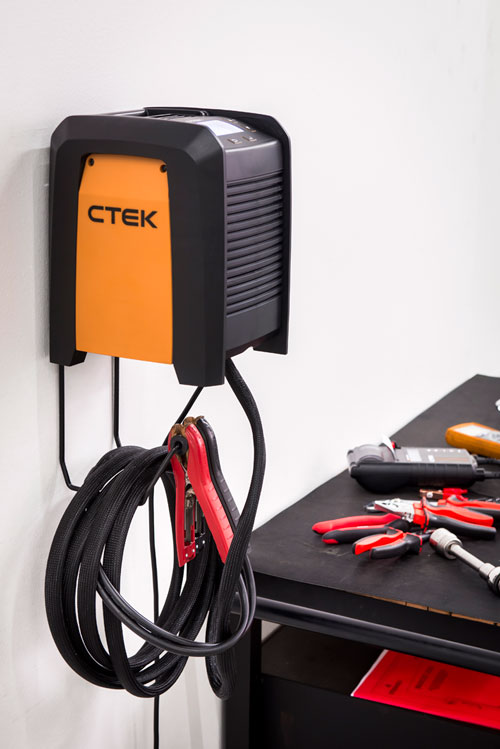

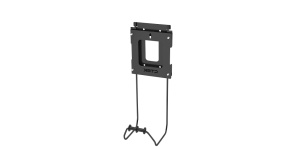

Positioning; Portable, Wall mounting (with special kit)
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 4.6A max
Output; 12V, 60A max
Start voltage; 0.8V
Back current drain*; Corresponding to less than 2Ah/month
Battery types; 12V:, WET, Ca/Ca, AGM, EFB, GEL, LiFePO₄
Battery capacity; 10–1800Ah, lead-acid battery types. 15–600Ah, LiFePO4.
Charge cables length; 5000 mm (DC cable)
Net weight (unit with cables); 8.6 kg
Gross weight (unit in box); 10.1 kg
Insulation class; IP40 (indoor use)
Ripple**; Less than 4%
Model Number; 40-232
